Mayra Yachts Trawler

/Mayra Yachts Trawler

Mayra Yachts Trawler

Print
LENGTH: 19,3 mt. • CABIN: 3 • GUEST: 6
6,874,100
TAX EXCLUDED
1,000,000
TAX EXCLUDED
1,128,400
TAX EXCLUDED
895,698
TAX EXCLUDED
  • TRY
  • EUR
  • USD
  • GBP

Specifications

Length : 19,3 mt.
Beam : 5,73 mt.
Draft : 1,83 mt.
Year : 2015
Construction : Steel
Engines : 2x CUMMINS QSL9- 405HP@ 2100 rpm
Engine Hours :
Cruising Speed : 10
Top Speed : 12
Flag :
Location : Turkey
Marina :
Builder : Mayra Yachts
Exterior Designer : Bruce Roberts
MAIN CHARACTERISTICS
  • BUILDER MAYRA YACHTS
  • DESIGNER BRUCE ROBERTS
  • ACCOMODATION CLASSIFICATION 1 Master-1 VIP-1 Guset + 1 Crew CE Certified
  • LENGTH OVER ALL 19.3 meters
  • LENGTH WATER LINE 17.63 meters
  • BEAM MAX 5.73 meters
  • DRAFT 1.83 meters
  • DISPLACEMENT (Light Ship) 56 Tonnes
  • DISPLACEMENT (Fully loaded 70 Tonnes
  • GROSS TONNAGE 70 GT
  • TOP SPEED 12 Knots
  • RANGE at CRUISING SPEED 900 N.miles

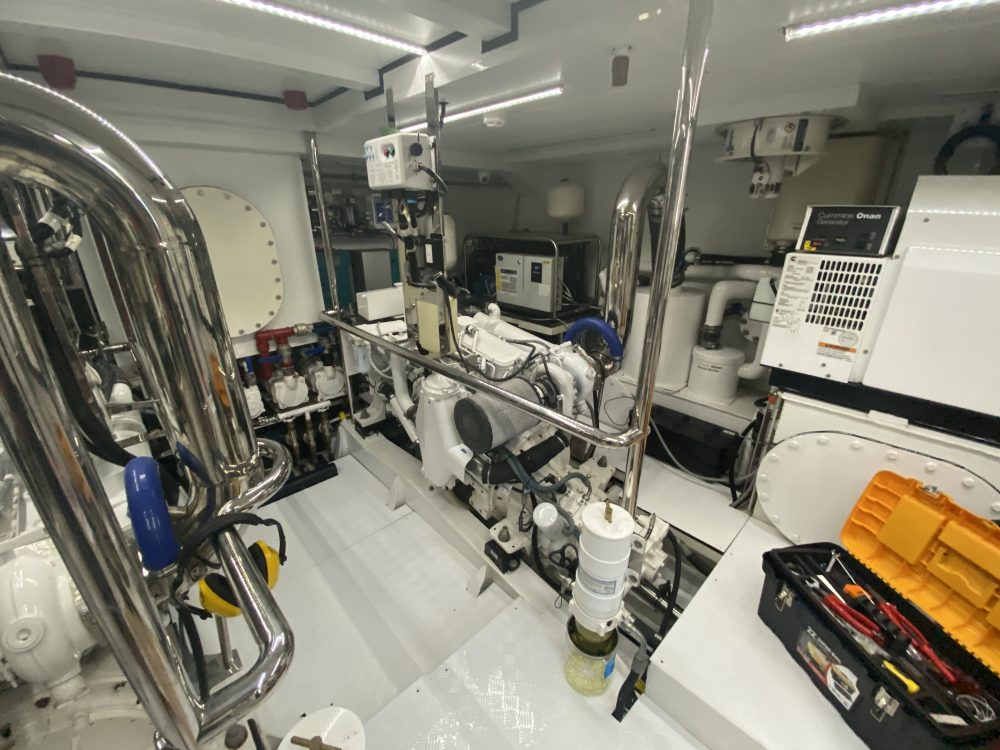

  PROPULSION
  • MAIN ENGINES 2x CUMMINS QSL9- 405x405 MHP@ 2100 rpm
  • GEARBOX ZF 305-3 2.917/1 reduction
  • GENERATORS 1x 27,5 kW ONAN– 400VAC 50Hz SERVICE GENERATOR
TANK CAPACITY
  • FUEL CAPACITY 3.000LT
  • FRESH WATER CAPACITY 1.800 LT
  • BLACK WATER 570 LT
  • GRAY WATER 570 LT
BUILD / CONSTRUCTION
  • HULL / SUPERSTRUCTURE STEEL
  • DECK FIRST QUALITY TEAK
AUXILARY EQUIPMENT
  • BOW THRUSTER SIDE POWER 300 HYD U16 24HP
  • AIR CONDITIONING CONDARIA MARINE AIR 72000 BTU
  • WATERMAKER SELMAR PACIFIC 150/CS 170 L/24 HR
  • PUMPS GIANNESCHI
  • STABILIZER SIDE POWER ZERO SPEED STABILIZERS
DECK EQUIPMENT
  • SWIM LADDER– CUSTOM S.STEEL.
  • GANGWAY – HYDRAULIC – SOMERYAT
  • STAINLESS STEEL HANDRAILS
  • WINDLASS – 1x VERTICAL WINDLASS M S.STEEL.
  • CAPSTANS – 2x HYDRAULIC CAPSTANS
  • MOORING BOLLARD – CUSTO
  • ANCHOR – 70 KG CUSTOM S.STEEL AND 14 MM.CALIBRATED AND GALVANIZED CHAINS(137.5)
  • SLIDING AFT DOORS - STAINLESS STEEL DOORS
  • WATERTIGHT DOORS
INTERIOR
  • CLASSIC MAHOGANY FINISH WOODEN INTERIORS IN SATIN LACOUER, WITH LAYING LEATHER CEILING&CARPET FLOORS,
  • ALL PANELLING&DOORS ARE MADE OF SOLID WOOD AND MARINE PLYWOOD,
  • STAINLESS STEEL PORTHOLES IN EACH CABIN,
  • ALL INTERIOR INSULATIONS ROCKWOOL,

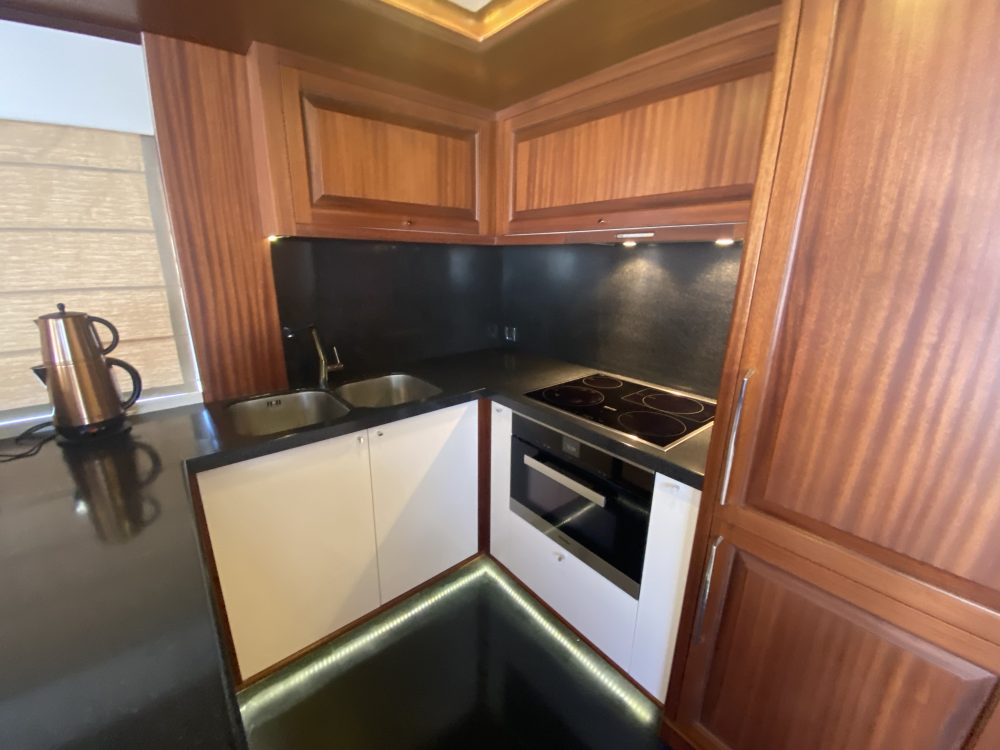

GALLEY
  • MIELE GALLEY APPLIANCES.
  • STAINLESS STEEL ELECTRIC COOKER AND OVEN,STAINLESS STEEL SINK,NATUREL CORIAN COUNTERS.
  • ONE 220 V REFRIGERATOR,ONE 220 V DEEPFREEZER,ONE 220 V DISHWASHER.
  • ONE ICEMAKER.
BULWARKS AND RAILS
  • A MAHOGANY PROFILE,TO BE FITTED AROUND RAIL ON DECKS,
  • RAILS AND HAND RAILS DECKS,ARE TO BE MADE OF SEAWATER RESISTANT STAINLESS POLISHED STEEL.
HATCHES AND DOORS
  • DOORS PROVIDED IN WATERTIGHT BULKHEADS ARE TO ENSURE WATERTIGHT INTEGRITY AND ARE TO BE CAPABLE OF OPERATION OF THE DOOR FROM BOTH SIDES OF THE BULKHEAD.

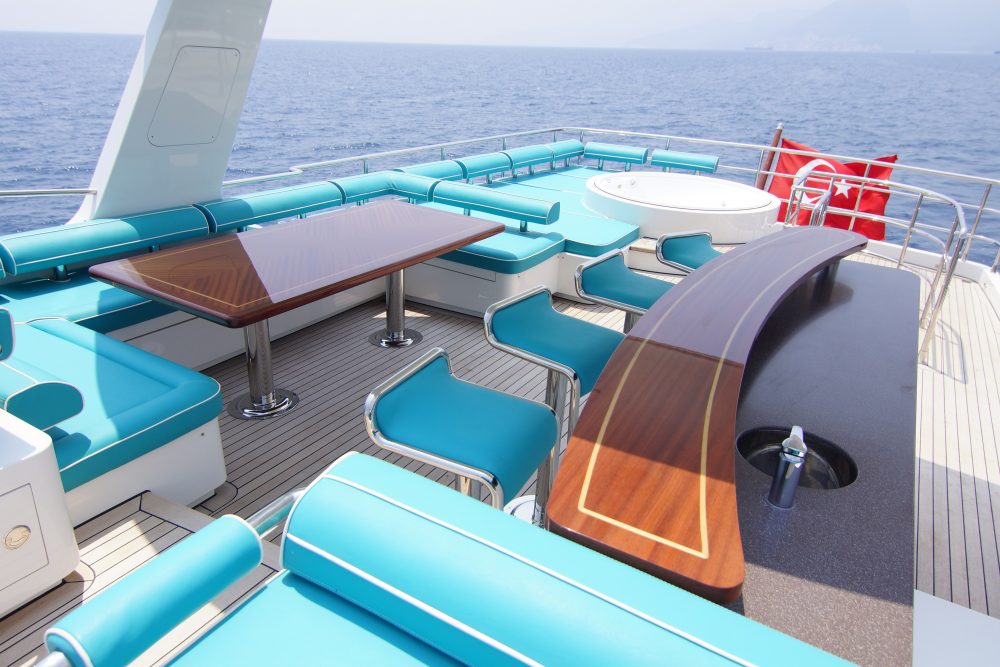

FLYBRIDGE
  • SEATING FOR UP TO EIGHT PEOPLE,

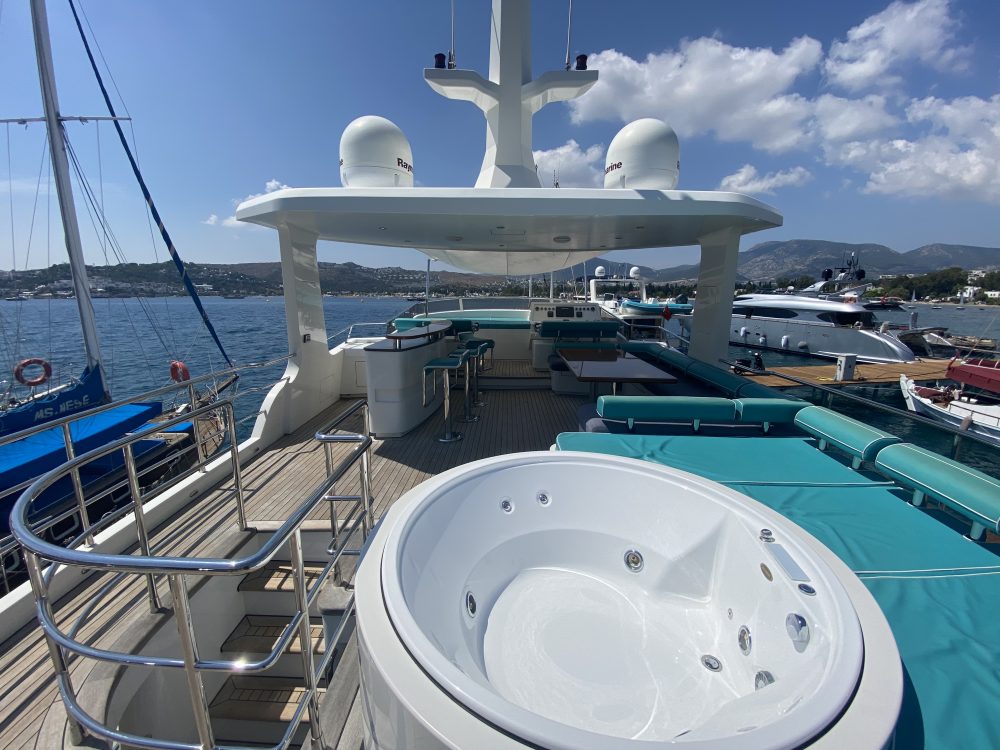

  • JACUZZI WITH SUNBATHING ARROUND,
  • THE EXTERNAL BAR WILL BE FITTED WITH THE FOLLOWING EQUIPMENT:
    • BARBECUE,
    • REFRIGERATOR UNDER COUNTER
    • ICE MAKER,
    • STAINLESS STEEL SINK,
    • NATUREL CORIAN COUNTERS,
FIXTURES & FITTINGS:
  • ALL FURNITURE FITTING WILL BE “HAFELE”
  • DOOR RETAINERS AND LATCH SETS WILL BE “HAFELE”
  • WARDROBE DOOR HANDLES WILL BE “SOUTHCO FIXED PUSH BUTTON” LOCKER CATCHES WILL BE “TIMAGE DRAWER LOCKS”
  • CURTAIN / BLIND SYSTEM WILL BE “OCEAN AIR”
  • INTERIOR BATHROOM WATER FAUCET FIXTURES AND ACCESSORIES WILL BE “HANSGROHE”,
  • SINKS IN BARS AND GALLEY WILL BE STAINLESS STEEL TYPE “BIANCO” OR EQUAL.
  • TOILET SYSTEM WILL BE “DOMETIC”
LIGHTING, ELECTRICAL
  • ONE GENERATOR 25 kW, KOHLER or ONAN, 230 V.AC, 50 Hz, WITH SOUND INSULATION CABIN.
  • 220 VOLT AC&24 VOLT DC ELECTRICAL SYSTEM.
  • AUTOMATIC INVERTER/BATTERY CHARGER.
  • 230 VOLT SHORE SUPPLY CONNECTION.
  • INTERIOR CEILING LIGHTING FIXTURES WILL BE “CANTALUPI”OR EQUAL.
  • LIGHTING SWITCHES AND ALL SOCKETS WILL BE VIMAR TYPE OR EQUAL.
  • LIGHT SWITCHES AND SOCKET OUTLETS WILL BE AS SCHEDULED WITH EUROPEAN DOUBLE SOCKET OUTLETS. INVERTORS WILL BE PROVIDED AS REQUIRED, AND ALLOWANCE WILL MADE FOR CONNECTION TO TV AND HI-FI UNITS IF REQUIRED.
  • ALL LIGHT FITTINGS WILL BE MAINS, OR LOW VOLTAGE AS SCHEDULED. WARDROBES AND SELECTED CUPBOARDS AND OTHER UNITS WILL HAVE DOOR-ACTIVATED INTERNAL LIGHTS. EMERGENCY LIGHTS WILL BE PROVIDED IN EACH ROOM. NIGHT LIGHTS WILL BE PROVIDED IN THE UPSTANDS OF STEPS AND ALONG SKIRTINGS. LED STRIPS WILL BE PROVIDED ON DISPLAY CABINETS AND BOOKCASES, BEHIND PELMETS BY WINDOWS, UNDER FURNITURE IN GUEST AREAS.
ELECTRONICS,NAVIGATION AND SAFETY
  • RAYMARINE ELECTRONICS&NAVIGATION EQUIPMENT
  • C 127 12” Multifunctional display with Built-in Fishfinder.
  • C 125 12” Multifunctional Display No Chart.
  • RD 418 D 18” DIGITAL RADOME
  • HS5-Sea Talk
  • B 744 V D/S/T Transducer
  • Ray 55E VHF Radio(Standard programs)
  • Ray Mic 2nd Station for 55E&218E
  • P70 R COLOUR A/P HEAD:POWER
  • GLOMEX VHF ANTEN
  • PAVO AIS KLAS B TBCS
  • İ70 MULTIFUNCTION COLOUR DISPLAY
  • Thermometer and barometer
  • Standard SOLAS navigation lights
  • SOLAS life jackets as per capacity
  • Automatic inflatable life raft
  • Savant automation system in sloon
