Description

Fleming 55‐205 built 2007 / My NAZIRE The best pre owned Fleming 55 2007 on the market, offered in outstanding condition by her meticilous owner. This boat was built in 2007 to a very high equipment list with all the options needed to operate anywhere in Europe and blue planet.. Twin Cummins 500 hp engines, stabilizers, bow and stern thrusters are amongst the useful options that make this immaculate go anywhere yacht so desirable.

This boat is a fine example of the Fleming 55 2007, in perfect condition, meticulously preserved and professionally maintained. She is fully equipped and represents an excellent value for the range of the best trawlers in the world. She is lying in Bodrum Turkey

Please contact us for futher details.

bekirhan@skylightyachting.com

LOA: 55 ft 9 in

LWL: 50 ft 10 in

Beam: 16 ft

Max Draft: 5 ft

Cabin Headroom: 6 ft 6 in

Displacement: 66000 lb

Number of double berths: 1

Number of twin berths: 2

Number of Cabins: 3

• Compass

• Bow Thruster • Washing Machine

• Electric Bilge Pump • Oven

• Manual Bilge Pump • Microwave Oven

• Air Compressor • Air Conditioning

• Heating • Hot Water

• Refrigerator • Fresh Water Maker

• Deep Freezer • Sea Water Pump

• Battery Charger

• Shore Power Inlet • Generator

• Inverter

• Teak Cockpit • Cockpit Shower

• Teak Sidedecks • Cockpit Cushions

• Swimming Ladder

HULL

• Solid laminate, commensurate for hull size, made in female mold.
• Vinylester resin used for outer laminations
• Full-length stringers and athwartships frames laminated over foam
• Simulated planking grooves
• Gel coated finish above waterline
• Pettit, or equal, epoxy barrier coat below waterline.
• Integrally molded guard with s/s rub strip
• Keel extends below running gear
• Keel space filled and sealed across top
• FRP rudders with Aqualloy 22 Hi-strength stocks
• CE-approved S/S portlights
• S/S keel shoe – 8 ft long (2.4m)
• ZF-Faster Shaft “A” Struts

DECK AND SUPERSTRUCTURE CONSTRUCTION

• All parts made from molds.
• Corecell Cored construction with Cook gel coat

EXTERIOR

• S/S trim around roofs, on forward teak cap rail, and guard
• Italian made exterior locks
• S/S Aquasignal navigation and anchor lights

• AFT DECK AREA
• Cockpit with teak decking.
• Flush lazarette hatches with hinges, gaskets, locks & gutters with drains
• FRP Swim step, with s/s brackets. Teak surface. S/S rub rail
• Stainless steel telescopic swim ladder under swimstep. Can be deployed by swimmer
• Wide teak coaming around cockpit
• FRP skirt inboard of teak cap.
• Engine-room air intakes behind skirt and inside bulwarks
• S/S ladder to flybridge with teak treads
• Sliding doors to salon. FRP with glass windows & weather strips
• Seadog style latches for doors
• Hot & cold shower fittings on inside of transom adjacent to door, with quick release
• shower
• head and flexi hose
• Salt water 316 S/S faucet
• Fresh Water 316 S/S faucet
• Shorepower inlets for 110/220v, 60Hz, 50A, (European model 230v, 50 Hz, 32A)
• Shore inlets for Telephone & TV.
• Overhead low voltage lighting.
• LED rope lighting under coaming skirt.
• Chocks at hull sides and transom.
• Two 14” s/s heavy duty cleats secured to plates inside bulwarks
• Deck scuppers piped out through transom at boot stripe
• Hatch with steps down into lazarette for access to engine room
• 316 grade S/S handrail across transom
• Re inforced transom on port side for passarelle (passarelle not included)
• 50ft 220v, 50 amp Shorepower cord

SIDE-DECKS

• Teak decking
• 316 grade S/S handrails along house-side
• Teak rail cap on bulwarks
• Bulwark doors opening inboard with Seadog style latches and bolts
• Nonskid on top side of guard at boarding gates
• S/S overhead lights. Two per side.
• Courtesy LED “F” logo lights at steps up to Portuguese deck
• S/S handrails at side deck steps.
• Steps to Portuguese Bridge deck with teak treads
• House side fixed windows with tinted, tempered glass and FRP frames
• Galley & Pantry windows sliding with tinted, tempered glass and FRP frames
• Two sets of spring-line chocks per side
• Three Hereschoff style s/s cleats/chocks per side recessed into bulwarks
• Fuel fill fittings for four fuel tanks

PILOT-HOUSE DECK LEVEL

• Portuguese Bridge
• Teak rail cap
• Locker doors in aft face of Portuguese bridge
• 316 grade S/S handrail around forward side of pilothouse
• 316 grade S/S handrails at side of pilothouse Port & Stbd
• Sliding aluminum pilothouse doors P & S with weather seals
• Teak decking
• Hinged doors through Portuguese bridge to foredeck
• Individual Screen wash and heavy duty self-parking wipers on windshield
• Clear, tempered 9mm glass, in forward facing windshields
• Pilothouse windows are fixed and have FRP frames
• Inward opening doors on Portuguese Bridge side decks Port & Starboard

FOREPEAK

• PVC Chain tube
• Separate stowage for chain and rope
• Watertight collision bulkhead
• Forepeak drains directly overboard.
• Bitter end fittings
• Hatch scuppers
• High gloss poly paint finish
• Overhead light

FWD DECK

• Teak deck
• Two s/s CE approved skylights
• Teak rail cap on bulwarks increasing in width going fwd
• S/S stanchions to support teak handrail
• Teak hand rail
• Deck lockers forward either side of anchor platform.
• FRP anchor platform with integrally molded non-skid with teak finish and two sets of rollers
• Lofrans Falkon 24v DC, 1500 watt windlass with pendant control and remotes at both stations
• (P/H & F/B)
• 80Ib S/S ACE (Delta style) anchor
• 300ft of 3/8” Hi –test Acco chain
• Four s/s Hereschoff cleats
• Two 14″ s/s cleats per side.
• 316 grade S/S pulpit diameter tube. Welds ground and polished.
• Foredeck LED “F” Logo courtesy lights at deck level
• Hatch to forepeak
• Shorepower inlets for 110/220v, 60Hz, 50A, (European model 230v, 50 Hz, 32A)
• Shore inlets for Telephone & TV.
• Plug in for windlass control
• Salt water 316 S/S faucet inside foredeck lockers
• Fresh water 316 S/S faucet inside foredeck lockers
• Deck drains plumbed to boot-stripe to prevent black streaks
• FRP forepeak vent

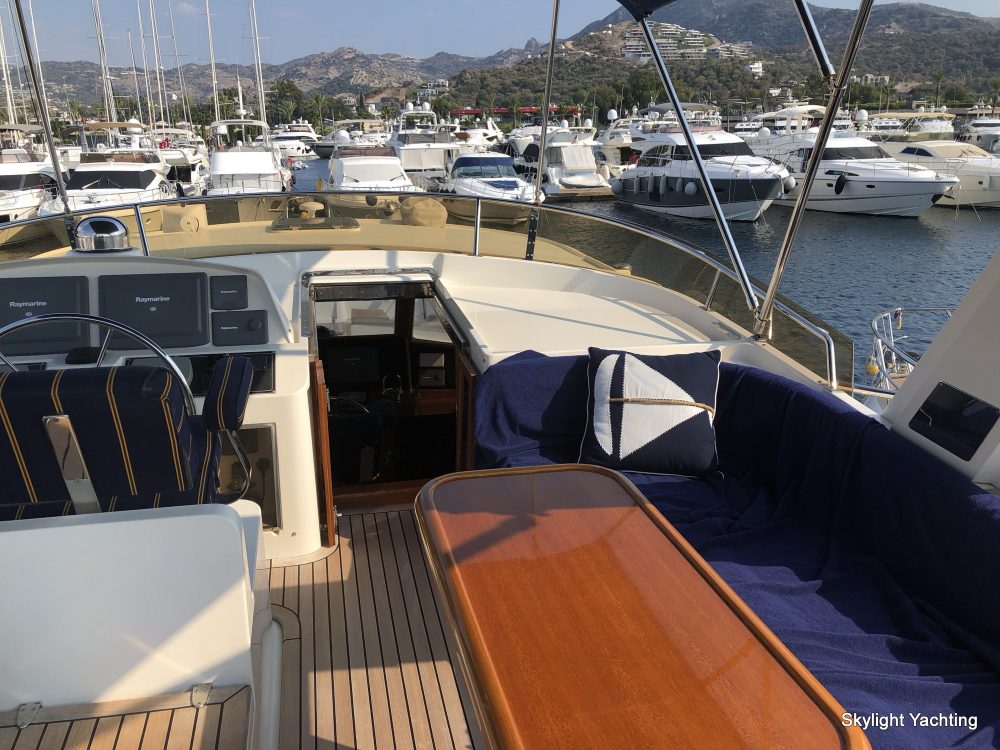

FLYBRIDGE

• Lexan venturi with s/s rail
• Steering console with engine controls
• Helmseat for two persons at control station
• Electronics console
• Engine instrumentation
• Ritchie Compass with light & dimmer
• Hydraulic steering with destroyer-type wheel
• Rudder angle indicator with light and dimmer
• AC source light
• Fire system repeater alarm
• Flybridge cushions on settees and helmseat using EZ-dri foam with Sunbrella upholstery and mesh backs for drainage
• Perfix snaps for attaching cushions
• L-Settee
• Table stbd side with drink holders
• Straight settee port side
• LED navigation lights in accordance with appropriate Collision regulations
• Buell air horn with twin trumpets
• Two Mastervolt 24v to 12v DC-DC converters with 12v battery back-up system.
• Hinged FRP Radar arch with spreader lights
• S/S signal mast with bow and anchor lights and aft facing floodlight
• Dumb waiter pass-thru from galley to flybridge
• S/S railings with mid safety rail
• Starter engaged warning lights
• Main engine sea water flow alarms
• Teak deck around seating area
• Auto anchor chain counter

BOAT DECK

• Integrally molded beige non-skid on deck
• 316 grade S/S handrails.
• 1,000 lb capacity Steelhead ES 1000 davit with powered telescopic boom, luffing, hoisting and rotation
• Sliding hatch to cockpit ladder
• GFCI AC outlet 230v, outlet RCD protected
• Fresh Water faucet (316 S/S)
• S/S saddles for tender (supplied loose)
• Aluminum plate inside deck for tender tie down

LAZARETTE

• Steering gear.
• Deck and hatch scuppers
• Hull finished with gloss white polyurethane paint
• Overhead lights s/s
• 300 gal (1135 liters) Fresh Water tanks. 4 pcs polyethylene
• Air-conditioning compressors
• Aft shorepower inlet circuit breakers
• Battery master switch panel
• Aft & main DC electrical panels
• Bow thruster Main Switch panel and fuse
• Charles AC Master controller
• Starboard platforms and sole boards with s/s lifters
• Groco raw water strainers for aircon
• Preparation for water maker (Water maker not included) with 1” seacock, strainer, power cable and circuit breaker

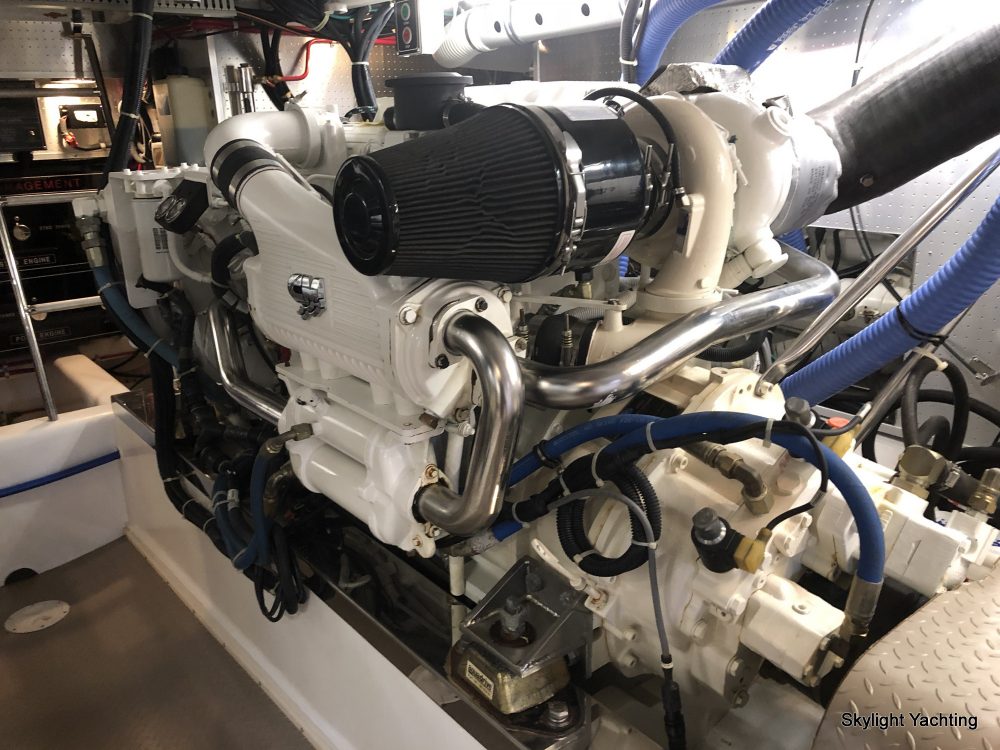

ENGINE-ROOM

• Fresh water pumps & inlet filter
• Aquadrives with thrust plate, CV joints and soft engine mounts
• Bronze drip-less shaft seals with Buck Algonquin “Seal Tight” Packing
• Fire retardant FRP fuel tanks (4). With sight gauges
• Equipment platforms
• 230v, 13.5Kw, 50 Hz) Onan eQD genset with sound shield and combined muffler/water separator for exhaust
• Groco raw water strainers for engines gensets aircon and all seawater intakes
• Main engine exhaust system with water-lock muffler
• Engine room heat extraction blowers (2)
• Heavy duty sound insulation covered with perforated aluminum
• Engine access hatches locked down on gaskets
• Emergency release latch on engine room forward hatch
• Fire suppression system with auto engines/genset/blowers shutdown
• Heat detectors (2)
• Bilges painted with glossy white poly paint
• Sole board covered with Lonseal vinyl.
• Sole lifters s/s
• Fresh water coiled hose
• Submersible bilge pump
• Hi-bilge alarm
• Start/stop buttons for both engines
• Lube oil pumps (2) for engines, transmissions and generator
• AC and DC lighting
• 230v AC, outlet RCD protected electrical outlets
• Buell Horn Compressor
• Anti-vibration soft mounts for genset
• Charles Isolation transformers (2)
• 440 A/H house battery bank – 8 pcs Lifeline GC4 AGM (6 volt) batteries
• 220 A/H port engine/genset starting battery bank
• 220 A/H stbd engine/genset starting battery bank
• FRP drip pans underneath main engines
• S/S mirror finished plates on inboard face of aft fuel tanks
• Lead foam sound insulation
• Starboard platforms and sole boards
• Airtight FRP door with dog down latch and viewing port

INTERIOR

• Accommodation with three staterooms
• Hanging lockers lined with Formica
• Insect screens for all opening windows, portlights and skylights
• German made interior door locks
• Non-slip treads on all interior stairs
• Cruisair reverse cycle air-conditioning with remote compressors and SMX-HT

controls

• All cabins pre-wired for intercom/phone system
• LED mood rope lighting behind valances, stairs and settees
• Cantalupi brand lighting with 28v Xenon bulbs
• Teak joinery with satin varnish hand-rubbed finish throughout
• Teak and holly sole throughout
• Light fixtures to have shiny s/s (chrome) finish
• Interior locker door handles to be brushed s/s finish
• Preparation for diesel heating (Heating system not included)
• Lead/foam lined insulation between accommodation bulkheads
• Standard three stateroom accommodation includes master cabin forward (en-suite) with two hanging lockers, port cabin with twin berths & hanging locker, stbd cabin with upper & lower berths & hanging locker, guest head to stbd.

SALON

• Fixed windows in house sides
• Opening windows in galley and pantry
• Sliding doors at aft end
• Spring loaded barrel bolts to allow phantom screen installation
• Medium grey tinted, tempered, glass.
• Wood window blinds
• Pre-wired for intercom/phone system
• Teak valance over windows with LED rope lighting
• Overhead light fixtures on dimmers
• Access hatches to allow for engine removal.
• ‘Chamois’ Ultrasuede headliner
• CO detector
• Upholstered L Settee
• Fleming Hi-Lo oval table with teak top
• FRP sandwich with Nidacore honeycomb composite sole
• Air-conditioning
• Aft bar cabinet with icemaker
• Removable storm sill for aft doors
• Teak Sconce lights with tapered shade
• Teak overhead handrail
• Bennett TV lift in centre of stbd side entertainment centre

GALLEY

• Granite (or Corian) countertops
• Black composite double sink
• Insinkerator waste disposal
• Stainless Steel finish Convection microwave oven
• 20.5 cu ft side by side refrigerator/freezer
• Grohe swivel faucet with removable spray head
• Overhead light fixtures
• Grohe swivel faucet with removable spray head
• Trash compactor
• Drawers with guides and stops
• Cabinets
• Air-conditioning
• Duplex outlets (European model 230v AC, outlet RCD protected)
• Dishlocker at stbd side
• Granite splash back installed behind sink and cooktop
• Preparation for optional dishwasher
• Four burner Induction cooktop with s/s potholders
• Miele S/S oven

PILOTHOUSE

• Helm Seat
• Chart table with double-guide drawers and stops
• Chart light on flexible arm
• Dismountable control console with space for owner supplied electronics
• Engine display screens on lower console
• Horn control
• Air reservoir for Buell air horn
• Rudder angle indicator with light & dimmer
• Back lit engine start & stop buttons
• Electronic engine controls. Glendinning EEC 3 with back up gear and throttle with
• synchronizer
• Hydraulic steering with Destroyer type steering wheel
• Ritchie Compass with light & dimmer
• Overhead electronics console
• Wiring routes to facilitate equipment installation
• Overhead light fitting with dimmer
• LED red and white dimmable bridge lights in upper console
• Stairs down to salon, up to flybridge
• Back lit electrical distribution panels for AC and DC
• Alarm and advisory panel
• Doors on AC, DC and advisory panels
• L-shaped settee on raised area with drawer underneath
• Wooden window blinds on port & stbd windows (3)
• Teak table with single s/s leg and swivel
• File drawer
• Self-parking, heavy-duty wipers with multi-speed/intermittent controls & individual
• fresh water
• wash on forward-facing windows
• Windshield glass, clear, tempered, 9 mm thick
• ‘Chamois’ colour Ultrasuede headliner
• Demister blower on forward facing windows
• Control for bow thruster
• Hinged bookcase for access to underside of flybridge console
• Air-conditioning
• ITIM Black water tank level indication and pump control panel
• Generator digital control panel
• Windlass up/down switch & control circuit breaker
• Fire system and high level bilge alarms panel
• Bilge pump control on advisory panel
• Equipment running advisory panel
• Pre-wired for intercom/phone system
• Dimmer for instrument lighting
• Starter engaged warning lights
• Main engine sea water flow alarms
• Teak Sconce lights with tapered shade
• Wet locker
• Computank fuel and water level indicator
• Auto anchor chain counter

ACCOMMODATIONS

PASSAGE

• Lower part of bulkhead finished with teak, upper part finished with Ultrasuede. Teak
• chair-rail
• trim at join
• Access doors to staterooms
• Rope lights at stairs to salon and forward cabin
• Overhead low voltage Xenon lighting
• Manual bilge pump under steps
• Miele washer and vented drier in cabinet behind sliding door
• Teak handrail

FORWARD STATEROOM

• Four s/s CE-approved Portlights
• CE approved S/S skylights (2) with insect and black-out screens
• Tapered queen-sized bed with hydraulic lift and manually slide
• Upholstered Headboard
• Custom sprung mattress
• Teak lockers either side of bed
• LED Rope lighting under bed and steps
• Two hanging lockers. Teak faced with louvered doors. Automatic interior lights
• TV space on bulkhead
• Drawers with center guides and stops
• Beveled-edge mirrors
• Door stops and holders.
• Doors teak frame with flat teak panels.
• Bulkheads with teak
• Low voltage Xenon overhead lights
• Berth reading lights.
• CO detector
• Drapes
• Emergency Escape hatch with integral ladder

PORT HEAD (en Suite)

• CE-approved Portlight with removable insect screen
• FRP shower stall with granite sole, auto sump pump, & seat and lockers
• S/S and glass custom shower doors
• Grohe Shower mixer, pressure and temperature compensated
• S/S Toiletries rack inside shower locker
• Marble or granite counter top with porcelain basin
• Grohe Faucets
• Beveled-edge mirrors
• Low voltage Xenon lighting
• GFI outlet 230v AC, outlet RCD protected
• Headhunter pressure-jet toilet. Bone color.
• Ventilator fan
• S/S towel rails
• Drapes

STBD GUEST CABIN

• S/S CE-approved portlights with removable insect screens
• Two berths, upper berth slides outboard when not in use
• Hanging locker with auto-light.
• Nightstand with drawers
• AC outlet 230v, outlet RCD protected
• Custom Sprung mattresses
• Xenon overhead lighting.
• Berth reading lights
• LED Rope lighting and drape tracks at portlight openings.
• Full height beveled-edge mirror
• Pocket entrance door
• CO detector
• Drapes

PORT STATEROOM

• S/S CE-approved portlights with removable insect screens
• Twin berths
• LED rope lights under berths
• Full height beveled-edge mirror
• Hanging locker with auto light and louvered door
• Valance over portlights
• Custom Sprung mattresses
• AC outlets 230v, outlet RCD protected
• Upholstered Headboards
• Low voltage Xenon overhead lighting
• Bookshelves
• CO detector
• Drapes
• Berth reading lights
• LED Rope lighting and drape tracks at portlight openings.

GUEST HEAD

• CE-approved Portlight with removable insect screen
• FRP-lined shower stall with granite sole
• Page 18 of 28
• S/S and glass custom shower doors
• Lockers
• Grohe shower mixer pressure and temperature compensated
• Marble or granite counter top with porcelain basin
• Grohe Faucets
• Porcelain basins
• Beveled-edge mirrors
• Low voltage overhead Xenon lighting
• AC GFI outlet 230v, outlet RCD protected
• S/S Towel rails.
• Headhunter pressure-jet toilet. Bone color.
• Ventilator fan
• Drapes

SYSTEMS

STEERING

• Hynautic hydraulic steering
• FRP rudders with Aqualloy 22 stocks
• Destroyer wheel at flybridge and in pilothouse
• Back lit rudder angle indicators at pilothouse and flybridge stations

ENGINE CONTROLS

• Glendinning EEC 3 electronic engine controls at pilothouse and flybridge, with full

back up system and synchronizer.

MACHINERY

• Cummins QSC 8.3 500 hp Engines (2)
• Coolant recovery tanks on main engines
• Sidepower SP240TC 15.5 HP (11.4 Kw) bow thruster with Sidepower Main Switch and controls at each station
• Trac Hydraulic Stabilizers
• 13,5 kw Onan Generator
• ZF-Faster 4-blade Nickel Aluminum bronze propellers
• Shafts Aqualloy 22 Hi-Strength 2 1/4”
• Cutless-type shaft bearings
• Shaft struts – recessed A-Brackets
• Aquadrive anti-vibration system, couplings and engine mounts
• Bronze drip-less shaft seals with Buck Algonquin “Seal Tight” Packing
• Water-lock muffler with transom exhaust
• Bennett trim tabs with indicators and controls in Pilothouse and Flybridge

FUEL SYSTEM

• Fuel filters. Racor 75/900MAX Duplex with vacuum gauges and water-in-fuel sensors for main engines.
• Racor 500MA fuel filter for generator
• 4 FRP fuel tanks made of vinylester and fire retardant resins
• Total fuel capacity 1,000 USG (3785 Liters)
• Sight glasses on all fuel tanks with self-closing safety valves
• Fuel tank sumps and drains with shut-off valves on all tanks
• Fuel management panel for engine/genset supply return selection
• Remote emergency fuel shut-off device for all tanks

PLUMBING

SANITARY

• Headhunter Neo-classic heads, Bone color.
• Toilets flush to FRP holding tank with level indicator or directly overboard
• Toilet flushing for both Seawater and Freshwater.
• Anti-odor filters on holding tank vents Port & Starboard
• 100 gal (378 Liters) Black water tank
• 24v DC Sealand macerator pump
• ITIM Tank monitoring / pump control system
• Plastic lined pressure accumulator tank
• Black water tank suction deck fittings port and stbd side
• Black water tank seawater flushing system, with self closing safety valve

FW SYSTEM

• 300 USG (1135 Liters) total in four polyethylene tanks, with drain and isolation
• valves.
• Sight glasses on water tanks
• X-Caliber 24v DC Headhunter Fresh water pump
• Pre-plumbed & wired, back-up X-Caliber 24v DC Headhunter Fresh water pump
• 20 USG (75 Liters) Torrid water heater with 220v AC heating element and heat
• exchanger coil,
• drain & pressure release valves.
• Heat exchanger system and circulation pump for heating domestic water from port main engine
• Fresh Water 316 S/S faucet on foredeck
• Fresh Water 316 S/S faucet on flybridge
• Fresh Water 316 S/S faucet in cockpit
• Grohe interior faucets
• Whale brand plumbing
• Whale gulper shower sump pumps
• Fresh water coil hose in engine room

SW SYSTEM

• X-Caliber 24v DC Headhunter seawater pump and strainer
• Salt water 316 S/S faucet on foredeck
• Salt water 316 S/S faucet in cockpit
• Sea water flush line connected to black water tank, with self closing safety valve
• Whale brand plumbing
• Groco intake strainers for main engines, generator and sea water system

BILGE SYSTEM

• 3 pcs Rule electric bilge pumps with auto/man control
• Manual bilge pump for engine room bilge compartment
• Hi-level bilge alarm switches in lazarette, engine room, and forward bilge

ELECTRICAL

ELECTRICAL – AC

• Onan eQD generator, single phase, in sound shield mounted on anti-vibration soft
• mounts
• (European model 230v, 13.5Kw, 50Hz)
• Load distribution panel. Split panel system. Sub panels as required
• Digital meters (volts, amps, watts and frequency) and circuit breakers as required
• Two shore inlets fore and aft connected so as both can be used simultaneously
• (European
• model has two 230v, 50Hz, 32A inlets)
• AC outlets throughout boat. GFI type in heads, galley, engine room and exterior
• Imtra light switches and dimmers.
• 3,500 watt, 110v pure sine wave Outback inverter (Euro model 3000 watt, 230v)
• Inverter bypass system
• Inverter remote control panel in pilothouse.
• Charles Isolation & step-up transformers (2)
• Tinned copper wire used throughout

ELECTRICAL – DC

• Main ships system 24v DC.
• Three isolated battery banks
• 12v DC via two 24v-12v DC-DC converters & back-up battery system located on
• flybridge
• Battery disconnect and selector switches accessible from outside engine room
• Mastervolt 15 amp battery charger for engine/genset starting batteries (24v)
• Back-up/additional Mastervolt 50 amp battery charger for house bank
• DC load distribution center with breakers.
• Digital battery monitor – Volts, Amps, A/h.
• Alarm panel for engine functions, bilge, fire, sea-water flow etc
• Advisory indicators for key pumps and engine room lights
• 110 amp Leece-Neville alternators on each engine with Balmar multi-stage external
• regulator
• 440 A/H house battery bank – 8 pcs Lifeline GC4 AGM (6 volt) batteries
• Tinned copper wire used throughout
• Aft DC electrical panel in Lazarette

ELECTRICAL – BONDING

• Copper strap or cable connecting all thru-hulls, underwater fittings, pulpit and
• flybridge rails –
• (equipotential bonding system)
• Zincs on transom (2)
• Zincs on trim tabs (2)
• Copper strapping system in engine room, flybridge and pilothouse for SSB radio
• Counterpoise

MISCELLANEOUS OUTFIT

• SeaKits Marine Maintenance System (MMS) – Spare parts and maintenance
• management
• System including first year subscription
• Cruisaire reverse cycle air-conditioning throughout using REU model quiet blowers
• and SMX HT
• controls
• Ball-type seacocks on all through hulls at or below waterline
• Sika-Flex deck Caulking
• 5/8” thick teak deck
• Pre wiring with coax, CAT 5 and speaker cables throughout
